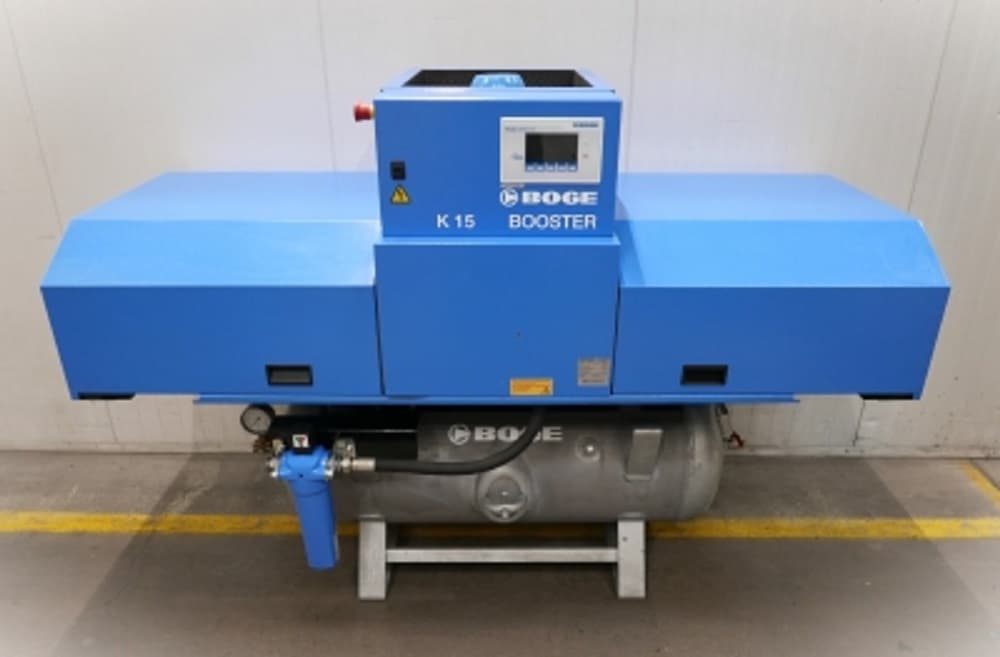

K 15 Booster -250 piston compressor (oilfree)

• Piston compressor mounted on a compressed air receiver

• Automatically operated, air-cooled, compresses air completely oil-free, CE marked

• Compressor and motor directly coupled

• Compressed air receiver fully immersed in a hot-dip galvanised bath (inside and out) for a long service life, one manhole

• as an inspection opening, CE marked

• Valve manifold with all necessary fittings, such as a type-tested safety valve

• pressure gauge, inspection flange with nozzle bore, with shut-off valve at the compressed air outlet,

• condensate drain valve

ATTENTION! Oil-free compressed air is required in the inlet pressure range.

• Maximum overpressure: 40.0 bar at a required !!! inlet pressure of max. 10.0 bar

• Theoretical stroke flow rate (intake capacity) at 5 bar inlet pressure = 1824 l/min

• Flow rate (delivery volume) according to ISO 1217:2009 Annex C at 5 bar inlet pressure:

  • 40 bar = 920 l/min

  • 32 bar = 1080 l/min

  • 26 bar = 1200 l/min

• Theoretical displacement flow rate (suction capacity) at 10 bar inlet pressure = 3344 l/min

• Flow rate (delivery volume) according to ISO 1217:2009 Annex C at inlet pressure 10 bar:

  • 40 bar = 2320 l/min

  • 32 bar = 2418 l/min

  • 26 bar = 2540 l/min

• BOGE Focus 2.0 control unit

• incl. super sound insulation.

Condition:

• Excellent condition
