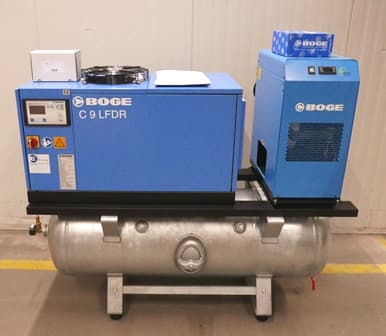

C 9 LFDR 270 screw compressor (oil-lubricated)

BOGE Screw Compressor with Frequency Control, Refrigerated Compressed Air Dryer and Compressed Air Receiver

General

• Air-cooled screw compressor with integrated frequency control. Screw compressor and BOGE refrigerated compressed air dryer mounted on a compressed air receiver.

Features

• Precise pressure setting via the keypad.

• Frost protection for the compressor down to -10°C.

• Adaptation to compressed air demand via stepless regulation of motor/compressor speed.

• Ideal for use where compressed air demand fluctuates significantly.

• Frequency converter and compressor each with their own control system.

• Low starting current within the rated current range with no starting current peaks.

• System complies with EMC directives for use in industrial environments.

• Constant system pressure.

• Smooth starts and stops within seconds.

• BOGE compressed air receiver with 270 l capacity.

• Compressed air receiver hot-dip galvanised inside and outside for a long service life.

• Receiver manufactured in accordance with Directive 2009/105/EC and AD 2000 specifications.

• CE marked.

• Valve manifold with all necessary fittings, including TÜV-approved safety valve, pressure gauge, test flange with nozzle bore, shut-off valve at the compressed air outlet and condensate drain valve.

• BOGE refrigerated compressed air dryer, automatic operation and ready for use.

• External Bekomat condensate drain with electronic level control for economical operation without compressed air losses.

• Control: BOGE Base Control.

• Includes Bekomat condensate drain (supplied separately).

• Performance

• Effective delivery rate of the complete system (minimum): 0.25 m³/min.

• Effective delivery rate of the complete system (maximum): 1.14 m³/min.

• Maximum operating pressure: 8 bar.

• Air delivery at 8 bar: 1.26 m³/min.

• Maximum pressure can be adjusted via the control system.

Condition

• New airend installed.
