High Pressure Microfilter (25 bar)

The BOGE high pressure filter: the BOGE VP Series flange prefilter

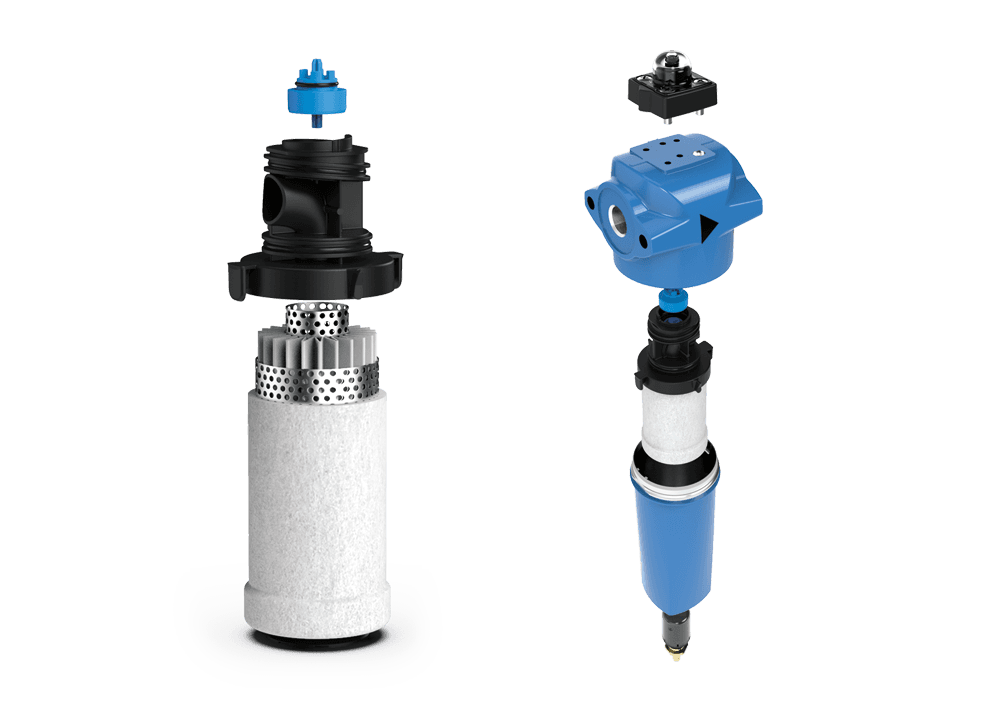

    • HIGH PERFORMANCE FILTER ELEMENTS
      The use of highly efficient element membranes made of nano-fibres with optimised exterior shell stand for extreme filter efficiency. You can choose between the coalescence fine element P (1 μm) and the coalescence fine element M (0.01 μm).
    • HIGH-TECH DESIGN
      The compressed air intake side is clearly visible due to its rim at the filter head – to ensure foolproof connection between the upper and lower filter housing sections during assembly.
    • HIGHLY EFFICIENT OPERATION
      The significantly lower pressure losses of this filter series help to reduce your energy consumption and to improve the CO2 balance for your company. Never before has compressed air filtering been so efficient!

    BOGE high-pressure filters are available as pre-filter V and also as microfilter FP or activated carbon filter A. All three filters remove solid particles down to 0.01 microns with a separation of 99.99999% from the compressed air. Highly effective microfibre fleeces have a high capacity to absorb dirt while only a low differential pressure is necessary. A pleated depth filter increases the filter area by a factor of 4.5 compared with conventional elements. The design of the filter housing and the filter element are optimised for the flow to have the lowest possible pressure resistance. The high-pressure filters come in 25 and 50 bar versions.

    Product

    High pressure microfilter (25 bar)

    Other construction variants

  • BOGE Max. Pressure Flow Capacity
    50 Hz     		Dimensions
    W × D × H    		 Weight
    Type bar psig m3/min cfm mm kg
    FP 12-25 25 363 1.250 44.1 87 x 82 x 184 1.55
    FP 21-25 25 363 2.080 73.4 87 x 82 x 184 1.55
    FP 29-25 25 363 2.920 103.1 87 x 82 x 184 1.6
    FP 42-25 25 363 4.170 147.2 87 x 82 x 254 1.8
    FP 75-25 25 363 7.500 264.8 130 x 122 x 290 4.6
    FP 125-25 25 363 12.500 441.3 130 x 122 x 390 5.1
    FP 195-25 25 363 19.580 691.2 130 x 122 x 490 5.6
    FP 290-25 25 363 29.170 1,029.7 130 x 122 x 690 6.9
    FP 435-25 25 363 43.330 1,529.5 164 x 146 x 673 9.1
