EFFICIENCY ON A NEW LEVEL
Screw compressor: S-4 series (37 - 75 kW)
Innovative separation technology
Consistent Easy-Access principle
Optimized compressor stage
Elastic "SilentMount" suspension
Oil-lubricated
Air- and water-cooled
37 - 75 kW
Up to 13.540 m³/min
IN SUMMARY
The strengths of our compact S-4 series
With the fourth generation of the popular S series, not only was a significant breakthrough in energy savings achieved. The S-4 models also reach a completely new level in sound insulation and maintenance friendliness. In fact, it is a fundamentally new design, and precisely this – the constant review of proven technologies – has characterized our approach from the beginning.
TECHNICAL DATA & BIM PORTAL
All types and values at a glance
Simply choose the correct construction variant for your selection. Whether delivery volume, rated power, operating pressure or dimensions, the following provides a concise overview of all relevant technical specifications for the series. Ideal for a quick comparison and planning. Depending on the product type, our BIM portal provides you with 2D and 3D drawings, documentation, operating manuals, spare parts lists and tailored maintenance offers.
Fad Max
[1]
[10]
Type | BIM | Operating Pressure (bar) | Effective delivery volume (min m³/min - max m³/min) | Motor Power (kW) | Receiver capacity (min liter - max liter) | Max dimensions (B x T x H mm) | Max weight (kg) |
|---|

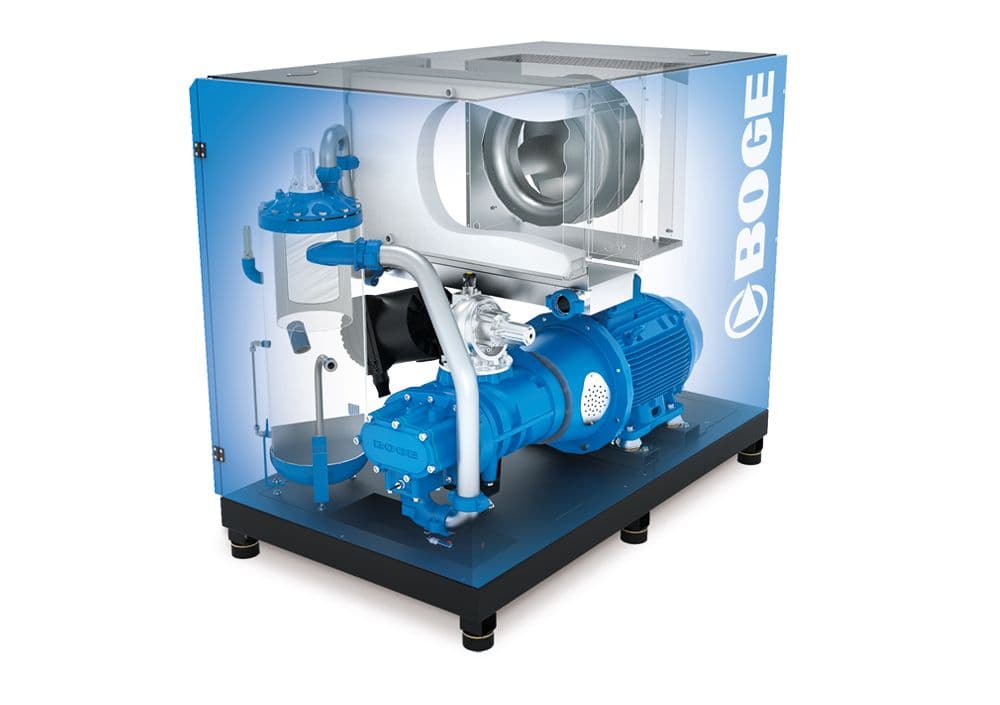

THE S 76-4 LFD – INCLUDING DRYER
The driving force for industrial progress
With its minimal power consumption and extremely short downtimes, the BOGE S-4 series constitutes the most efficient screw compressors in its respective segment. Shown in this example with an integrated dryer. The BOGE IntegrateDrive compression stage, which was developed in-house, lies at the heart of every S-4. It features a robust integrated gearbox or direct drive with speed control. But this series also impresses with other attributes such as simplified maintenance and long service life.
TYPICAL AREAS OF APPLICATION
Efficiency that quickly impresses whatever the application
No matter how different the operating conditions may be, the S-4 series pays off quickly whatever the application, thanks to its robust technology, minimal internal pressure losses and pioneering improvements for maximum efficiency. Whether with 37 or 75 kW, all S-4 models feature a premium compression stage (IntegrateDrive), which was developed in-house and designed for top efficiency to provide virtually maintenance-free operation. Making them the first choice for a wide range of requirements.
)
)
)
)
)
)
)
)
HELP WITH THE SELECTION?
Find the right compressor now – tailored and uncomplicated
With completely individual recommendations, we ensure that your compressor is not only powerful but also energy-efficient and reliable. From selecting the suitable model to the right equipment and maintenance and service options – we are at your side with competent, practical support, whether you contact us in person, by phone or digitally.
