- Screw Compressor S series up to 100 hp fixed speed

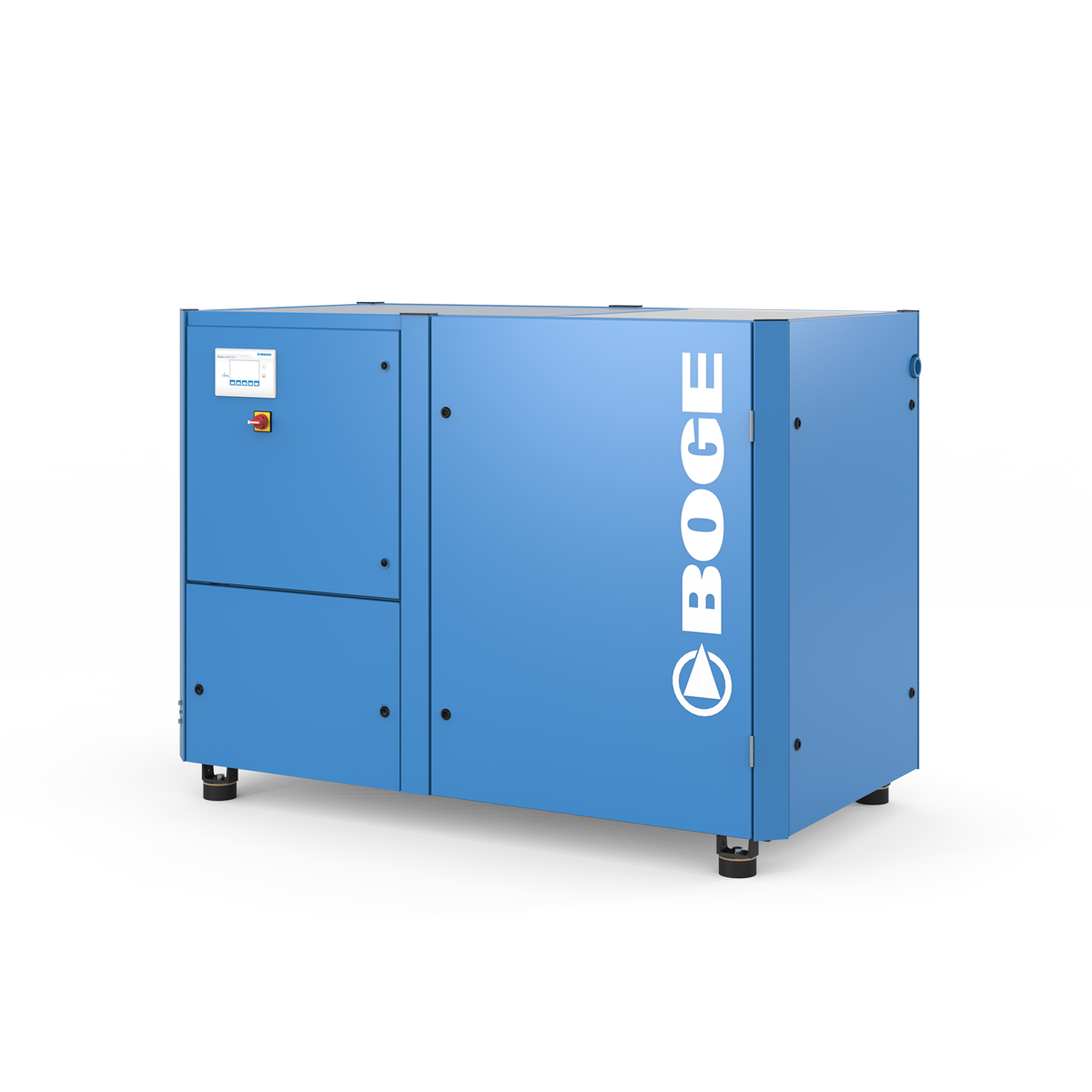

Screw Compressor S series up to 100 hp fixed speed
Even better quality than before: the new generation BOGE S Series
The new generation BOGE S Series manages to be even better than its predecessor: efficiency, smoothness and sound pressure levels are all significantly optimised.
Producto
Screw compressor, oil lubricated
ventajas
- Posibilidad de integrar la recuperación de calor
- Extremadamente silencioso
- Control: focus control 2.0
- máxima eficiencia
- Ventilador de refrigeración regulado por frecuencia
OTHER CONSTRUCTION VARIANTS
| BOGE | Máxima presión | Cantidad de suministro efectiva 60 Hz | Potencia del motor | Dimensiones An × Al × Pr | Peso | |
|---|---|---|---|---|---|---|
| Tipo | psig | m3/min | cfm | hp | inch | lbs |
| S 61-3 N | 100 | 287 | 60 | 79 x 42 x 57 | 2602 | |
| S 61-3 N | 115 | 7,730 | 273 | 60 | 79 x 42 x 57 | 2602 |
| S 61-3 N | 150 | 240 | 60 | 79 x 42 x 57 | 2602 | |
| S 61-3 N | 190 | 5,890 | 208 | 60 | 79 x 42 x 57 | 2602 |
| S 75-3 N | 100 | 359 | 75 | 79 x 42 x 57 | 2778 | |
| S 75-3 N | 115 | 344 | 75 | 79 x 42 x 57 | 2778 | |
| S 75-3 N | 150 | 8,440 | 298 | 75 | 79 x 42 x 57 | 2778 |
| S 75-3 N | 190 | 7,360 | 256 | 75 | 79 x 42 x 57 | 2778 |
| S 100-3 N | 100 | 475 | 100 | 79 x 42 x 57 | 2994 | |
| S 100-3 N | 115 | 452 | 100 | 79 x 42 x 57 | 2994 | |
| S 100-3 N | 150 | 10,950 | 387 | 100 | 79 x 42 x 57 | 2994 |
| S 100-3 N | 190 | 9,510 | 336 | 100 | 79 x 42 x 57 | 2994 |
