Buy used or rent at top rates
List price (plus VAT): 15,965.00 €
Current price in the BOGE Used Equipment Store (plus VAT): 8,500.00 €
Warranty (manufacturer's warranty): 6 month
Rental price (plus VAT)*: 287.00 €
Product Description

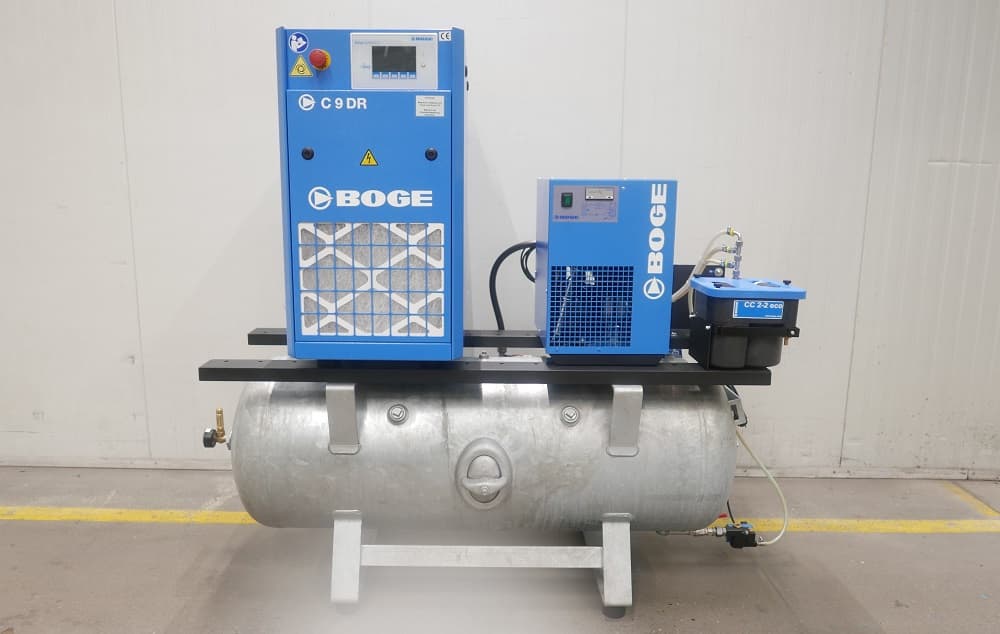

BOGE C 9 DR - 350 compressed air unit – air-cooled
Screw compressor with BOGE energy-saving refrigerated compressed air dryer mounted beneath
the compressed air receiver
Ready for operation, fully automatic, with CE marking
– BOGE Effilence energy-saving stage with optimised screw profile
– The highly efficient and maintenance-free BOGE GM drive system ensures maximum service life
through optimum, dynamically adjusted belt tension based on operating conditions and, together
with highly efficient IE 3 drive motors, ensures optimised power consumption
- continuous display of actual compression temperature and pressure
- Precise and convenient pressure adjustment via the keypad
- Anti-freeze protection for the compressor down to -10°C
BOGE compressed air receiver, 350 l capacity, horizontal
Hot-dip galvanised inside and out for a long service life
– Type-approved receiver in accordance with Directive 2009/105/EC,
manufactured in accordance with AD 2000, with CE marking.
– 1 handhole serving as an inspection opening
– Includes tank documentation
BOGE refrigerated compressed air dryer
- Condensate drain: level-controlled.
Control unit: BOGE focus 2.0
Includes 350-litre galvanised tank to AD 2000
Includes CCD 10 electronically level-controlled condensate drain on the compressed air tank (supplied separately)
Includes F 12-2 P and F 12-2 M filter combination fitted
Includes CC 2-2 oil-water separator fitted
At a glance
Technical data | Performance data |
|---|---|
Operating pressure | 13 bar |
Effective delivery volume | 0.87 m³/min |
Motor power | 7.50 kW |
Voltage | 400 V / 50 Hz |
Air connect | 1/2" |
Dimensions (BxHxT) | 1835 x 1645 x 955 mm |
Weight (kg) | 425.00 kg |
Rent longer, save more
Billing: Transparent billing per calendar week or portion thereof.
Long-term benefit: For rental periods of 4 weeks or longer, you’ll enjoy a 20% discount.
Getting started: Low minimum rental price of just 300.00 EUR (plus VAT).
Safety: Includes routine maintenance and CE certification.
