Screw Compressor SO...F up to 340 hp

Oil-free compressed air of the highest quality, with maximum efficiency and durability

Screw Compressor SO...F up to 340 hp

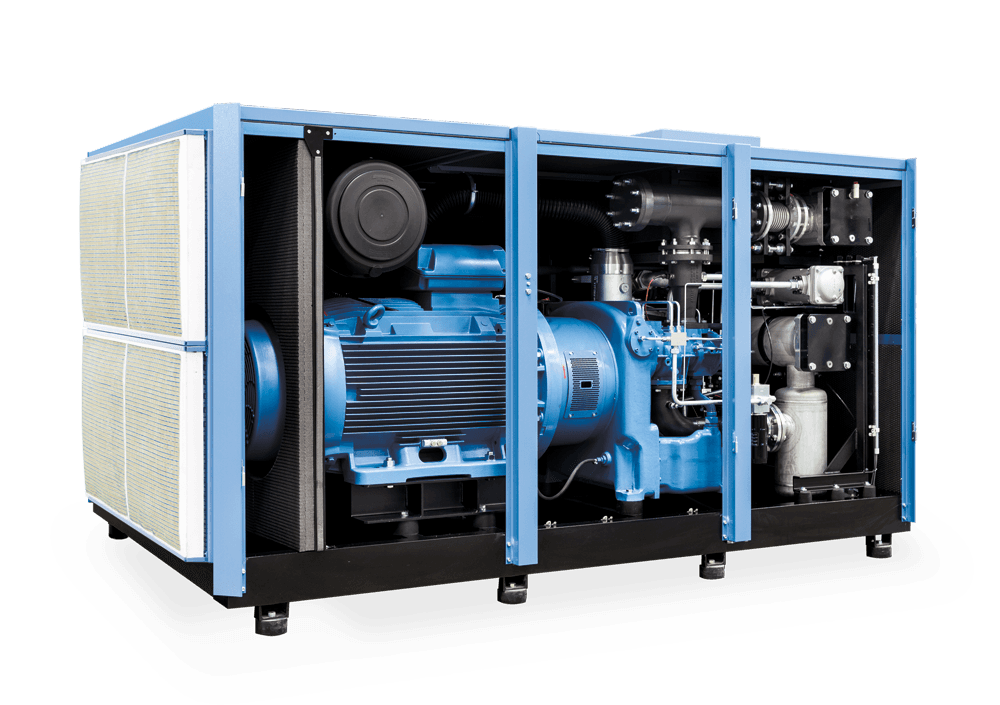

The screw compressors in this series produce oil-free compressed air – cleanly, efficiently and with maximum reliability. This makes them ideal for critical sectors, such as in the pharmaceutical, food and semiconductor industries. The frequency control integrated directly into the device switch cabinet adjusts the compressed air generation to the actual demand. In the oil-free screw compressors, coolant and lubricant substances are replaced by innovative materials. The key elements are the special compressor stage and the BOGE cooling concept. Both offer maximum safety and maximum efficiency – ideal for critical areas.

Product

Oil-free screw compressor with frequency control

advantages

  • heat recovery can be integrated
  • Prime control
  • oil-free compressed air
  • maximum efficiency
  • frequency control
BOGEPressureEffective Delivery Volume
60 Hz
Motor PowerDimensions
W × H × D
Weight
typepsigm3/mincfmm3/min(max)cfm(max)hpinchlbs
SO 150-2 FW N11510.67037718.230644150122 x 60 x 677165
SO 150-2 FW N15010.06035515.940563150122 x 60 x 677165
SO 180-2 FW N11510.19036021.160747180122 x 60 x 677716
SO 180-2 FW N15010.06035519.330683180122 x 60 x 677716
SO 220-2 FW N11510.83038226.300929220122 x 60 x 678046
SO 220-2 FW N15010.23036122.850806220122 x 60 x 678046
SO 269-2 FW N15010.75038026.180924270122 x 60 x 678157
SO 270-2 FW N11517.96063434.9001232270144 x 71 x 8511905
SO 270-2 FW N15017.79062828.4001003270144 x 71 x 8511905
SO 340-2 FW N11517.95063441.3301459340144 x 71 x 8512236
SO 340-2 FW N15017.81062934.5901221340144 x 71 x 8512236
