Refrigerant dryers DS 460-2 to DS 1800-2

The energy-saving dryer

Refrigerant dryers DS 460-2 to DS 1800-2

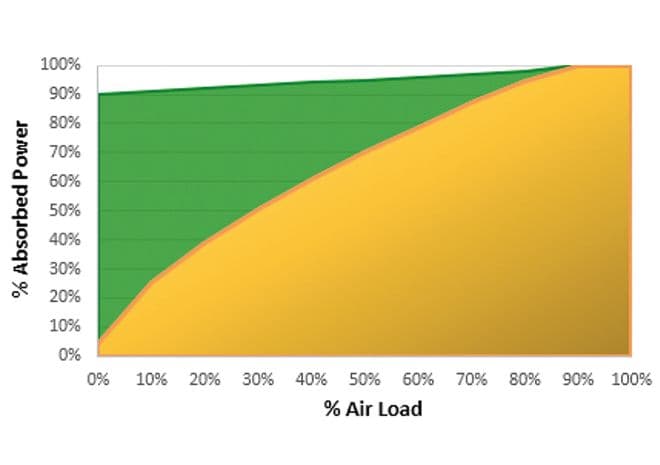

All of the models of this series are designed for extremely low energy consumption: The smart 4.3" touchscreen control automatically switches off the refrigerant compressor at partial load or in more favourable seasonal environmental conditions. The incoming compressed air is then cooled by the cold reserve stored in the heat exchanger. The compressor only starts up again when the compressed air has reached a certain temperature level. The frequency-controlled fan reduces energy consumption by up to another 25%! Pressure losses are effectively kept to a minimum, and the low refrigerant requirement combined with the low global warming potential (GWP) of the new refrigerant results in a delightfully low CO2 footprint.

Product

Next generation compressed air refrigerant dryer systematically designed to save energy

advantages

  • 4,3” touchscreen control
  • Electronic hot gas/bypass valve
  • Frequency-regulated fan
  • Hermetically sealed refrigerant circuit
  • HP & LP pressure gauge & LED status bar
  • low CO2 footprint
  • Refrigerant R 513a
  • Stable pressure dew point

COMPRESSED AIR ACCESSORIES FOR THIS PRODUCT

OTHER CONSTRUCTION VARIANTS

BOGEMax PressureFlow Capacity
50 Hz
Dimensions
W × H × D
Weight
typebarpsigm3/mincfmmmkg
DS 460-21420046.0001620973 x 1287 x 2050380
DS 520-21420052.0001830973 x 1287 x 2050380
DS 630-21420063.00022201205 x 1974 x 2055730
DS 750-21420075.00026501205 x 1974 x 2055730
DS 900-21420090.00031801205 x 1974 x 2055770
DS 1200-214200120.00042401205 x 1974 x 2055850
DS 1500-214200150.00053001517 x 2529 x 20401070
DS 1800-214200180.00063501517 x 2529 x 20401210
