WITH A WELL-FOUNDED CLAIM TO LEADERSHIP

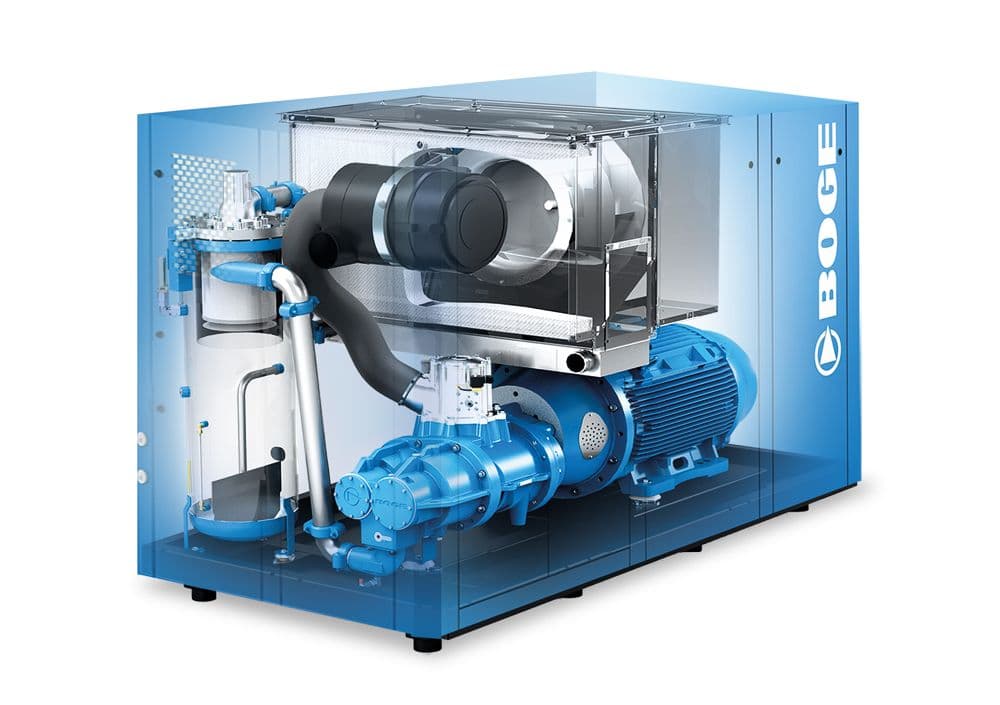

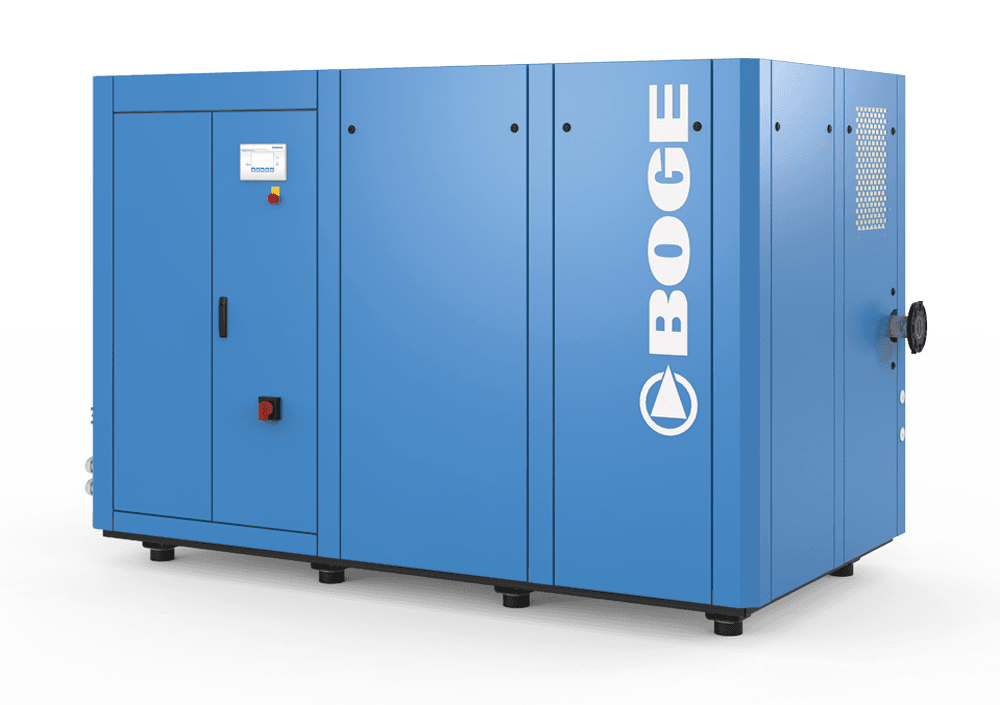

Screw compressor S-4 series (from 55 kW)
Optimized compressor stage
Elastic “SilentMount” suspension
Innovative separation technology for longer service intervals
Consistent easy-access principle
Lubrication type: Oil-lubricated
Cooling: Air- and water-cooled
Rated power: 55 - 160 kW
Effective delivery volume: Up to 28.390 m³/min
Advantages of the S‑4 series: Power for your production
The latest generation of BOGE screw compressors sets new standards for quiet, efficient and reliable compressed air generation, especially where continuously high air volumes are required. With robust engineering, minimal internal pressure losses and pioneering improvements for maximum efficiency, the S-4 series pays off quickly everywhere in the higher power classes from 55 kW – with pleasingly low maintenance requirements.
Loading...
More performance, less energy consumption.
The powerful S-4 series screw compressor
Efficiency, performance and intelligent technology: Discover the key benefits of the S-4 series in the video and learn how innovative solutions ensure highly efficient and reliable compressed air generation. More performance, less energy consumption – and maximum cost-effectiveness.
TECHNICAL DATA & BIM PORTAL
All types and values at a glance
Simply choose the suitable variant for your selection. Whether delivery rate, rated power, operating pressure or dimensions, here you will find all relevant technical specifications of the series compactly summarized. Ideal for quick comparison and planning. In our BIM portal – depending on the product type – 2D and 3D drawings, texts, operating manuals, spare parts lists and tailored maintenance offers are available to you.
Fad Max
[1]
[10]
Type | BIM | Operating Pressure (bar) | Effective delivery volume (min m³/min - max m³/min) | Motor Power (kW) | Receiver capacity (min liter - max liter) | Max dimensions (B x T x H mm) | Max weight (kg) |
|---|
Loading...
S-Series & BOGE duotherm
Get more from your compressed air
The S-Series delivers efficient, reliable compressed air – and with BOGE duotherm, you can take energy efficiency even further. Up to 72% of the energy used can be recovered as usable heat for heating, hot water or process support – turning your compressor into an even more efficient and valuable part of your energy system.
System solutions
Holistic compressed air system optimisation
For applications with higher power requirements, BOGE offers the right system solution: a powerful high-pressure refrigeration dryer minimises pressure losses and keeps the pressure dew point constant in every operating phase, with minimal consumption of the ozone-neutral refrigerant. For large-scale applications, the heat-regenerating adsorption dryers of the BOGE DAV range provide a particularly energy-efficient solution thanks to standard dew-point control.
Design details
Innovative down to the detail
Good compressed air technology shows in the details. With the S-4 series, every component has been thought through – for long service life, low noise and as little effort as possible. Many small improvements add up to a compressor that simply runs reliably. Discover below which details make the difference.
Control & Digitalisation
Everything under control
Today, smart control and digitalisation make compressed air easier than ever. Whether a single S-4 compressor or a complete compressed air station – the right control keeps everything running efficiently, reliably and in full view. Many tasks that used to take time and attention now run automatically. Discover below which BOGE controls and digital services make your everyday work easier.
TYPICAL AREAS OF APPLICATION
First choice for the most diverse requirements
Thanks to its robust engineering, minimal internal pressure losses and pioneering improvements for maximum efficiency, the S-4 series quickly pays off whatever the application. All S-4 models feature a premium compressor stage (IntegrateDrive), which was developed in-house and designed for top efficiency to provide virtually maintenance-free operation. Making them the first choice for a wide range of requirements.
)
)
)
)
)
)
)
)
BOGE bestcair, cairpac and more
Service & Warranty
Partnership-based service that protects your investment. Regular maintenance decisively extends the service life of your system - which is why BOGE's needs-based service offerings range from system inspection and maintenance contracts to a full-service contract, under which BOGE takes over every single task on your compressed air system. Certified BOGE service technicians are available worldwide for commissioning, maintenance, repair and inspection. In the event of a fault, you can also rely on our technical support, which is available around the clock, seven days a week.
With BOGE bestcair, your S-4 series receives five full years of warranty cover on all A-parts - free of charge to enrol and with prompt, free replacement throughout the entire period. Maintenance is carried out by certified BOGE service technicians using original BOGE parts, which are tested for several thousand hours before release; the matching BOGE cairpac maintenance packages bundle all required parts at a lower cost than the sum of the individual parts.
