K 8 Booster-250 piston compressor (oilfree)

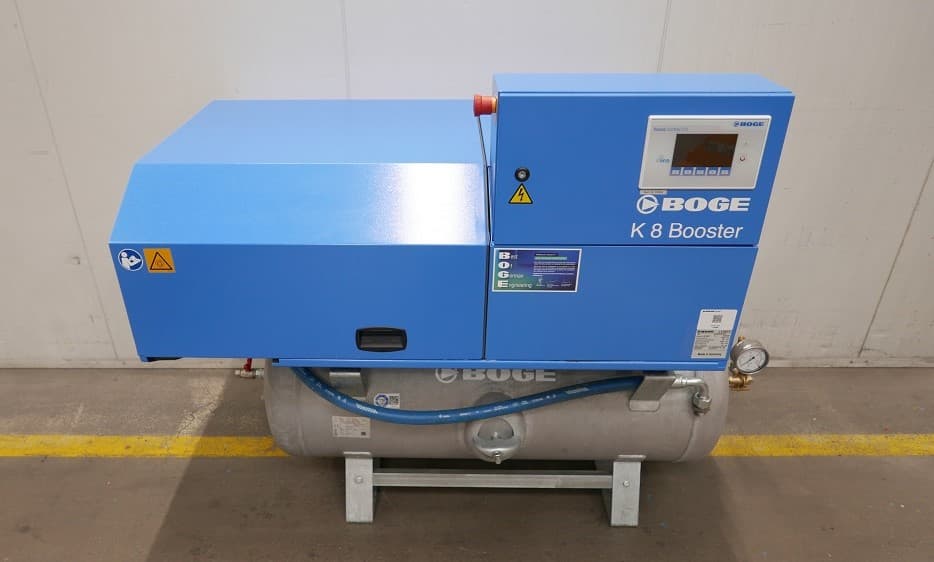

BOGE K 8-250 BOOSTER pre-pressure compressor unit, sound-insulated

Piston compressor with compressed air receiver mounted underneath

Automatically operated, air-cooled, absolutely oil-free compression, with CE marking

– Compressor and motor directly coupled

– Compressed air receiver fully hot-dip galvanised inside and out for a long service life, with one manhole

as an inspection opening, bearing the CE mark

– Valve manifold with all necessary fittings, including a type-tested safety valve

pressure gauge, test flange with nozzle bore, shut-off valve at the compressed air outlet,

condensate drain cock

ATTENTION! Oil-free compressed air is required in the inlet pressure range.

Maximum overpressure: 40.0 bar at a required !!! inlet pressure of max. 10.0 bar

Theoretical volumetric flow rate (intake capacity) at an inlet pressure of 5 bar = 1824 l/min

Volume flow (delivery rate) according to ISO 1217:2009 Annex C

at an inlet pressure of 5 bar:

40 bar = 460 l/min

32 bar = 540 l/min

26 bar = 600 l/min

Theoretical stroke flow rate (intake capacity) at inlet pressure of 10 bar = 3,344 l/min

Flow rate (delivery rate) according to ISO 1217:2009 Annex C

at inlet pressure of 10 bar:

40 bar = 1,160 l/min

32 bar = 1,209 l/min

26 bar = 1,270 l/min

BOGE Focus 2.0 control unit

including an electronically level-controlled condensate drain

Bekomat for compressed air tanks, supplied separately with

In excellent condition
