P 1 LDR-90 Piston compressor (oil-lubricated)

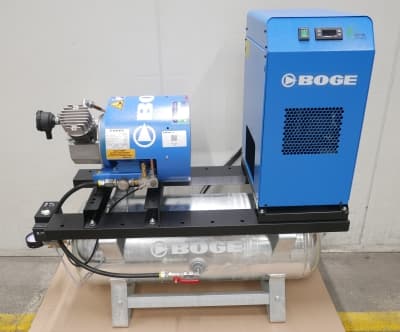

Oil-Lubricated Screw Compressor with Refrigerated Compressed Air Dryer on Compressed Air Receiver

General: Oil-lubricated screw compressor with refrigerated compressed air dryer mounted on a compressed air receiver.

Features:

• Oil-lubricated

• 100% duty cycle (S1 operation)

• Suitable for high ambient temperatures

• Highest industrial quality

Compressed Air Receiver

• 90 litre compressed air receiver

• Hot-dip galvanised inside and outside for a long service life

• Manhole for inspection

• Manufactured in accordance with Directive 2014/68/EU and AD 2000 guidelines

• CE marked

• Valve manifold includes:

  • Type-tested safety valve

  • Pressure gauge

  • Inspection flange with nozzle bore

  • Shut-off valve at the compressed air outlet

  • Condensate drain cock

Refrigerated Compressed Air Dryer DS..-2

• Energy-efficient drying

• Innovative aluminium heat exchanger for minimised pressure loss and up to 20% lower energy consumption

• Suitable for worldwide use thanks to dual-frequency design (50/60 Hz)

• Digital control as standard, including status display and potential-free contact

• Constant pressure dew point in every operating phase from 0–100% flow rate

• Environmentally friendly, ozone-neutral refrigerant R 513 A with up to 25% reduced refrigerant charge

Additional Equipment

• 3-pole pressure switch with overcurrent release

• Operating hours counter

• Mechanical venting

Condition:

• As new from 2025
