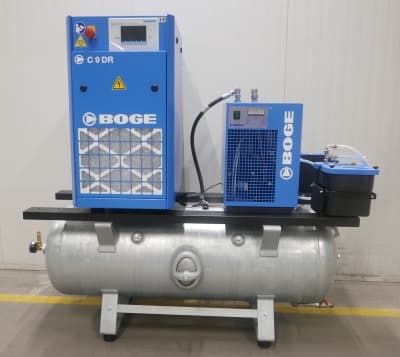

C 9 DR-270 Screw compressor (oil-lubricated, with a refrigerated dryer on receiver)

BOGE Screw Compressor with Refrigerated Compressed Air Dryer and Compressed Air Receiver

General: Screw compressor with BOGE energy-saving refrigerated compressed air dryer mounted on an integrated compressed air receiver tank. Ready for operation, fully automatic, and CE-marked.

Features:

• BOGE Effilence energy-saving stage with optimised screw profile

• Highly efficient and maintenance-free BOGE GM drive system with dynamically adjusted belt tension

• Highly efficient IE3 drive motor

• Continuous display of actual compression temperature and pressure

• Precise and convenient pressure adjustment via keypad

• Frost protection for compressors down to -10 °C

• BOGE compressed air receiver, 270 l capacity, horizontal design

• Hot-dip galvanised inside and outside

• Type-tested receiver according to Directive 2009/105/EC, manufactured in accordance with AD 2000 and CE-marked

• Inspection opening with manhole

• Including tank documentation

• BOGE refrigerated compressed air dryer

• Level-controlled condensate drain

• BOGE focus 2.0 control system

• Incl. 270-litre galvanised tank AD 2000

• Incl. CCD 10 electronic level-controlled condensate drain on the compressed air receiver (supplied separately)

• Incl. F 12-2 P and F 12-2 M filter combination (particles down to 0.01 μm and residual oil content down to 0.01 mg/m³)

• Incl. CC 2-2 oil-water separator, mounted

• Incl. BOGE Connect retrofit kit – standard (supplied separately)

Performance:

• Conversion kit for a maximum pressure of 8 bar available on request

• Delivery volume at 8 bar: 1.18 m³/min

Condition:

• New machine from 2026

• Repaired following transport damage

• Minor cosmetic defects
