Piston Compressor SRMV up to 15 kW

Optimised pressure with our piston booster

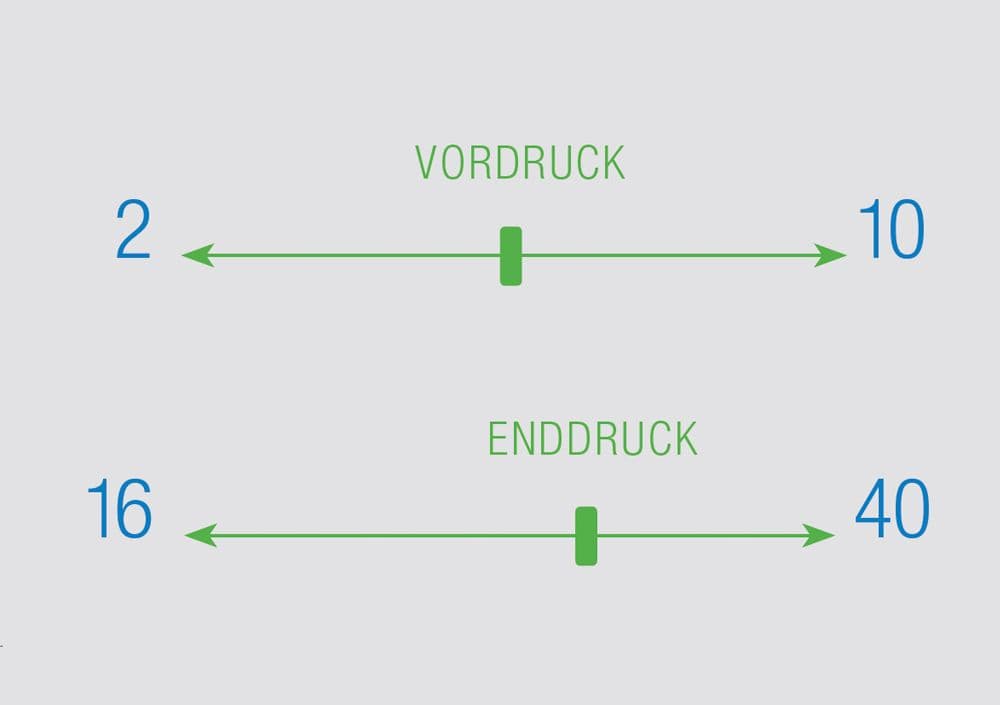

    • FLEXIBILITY AND EFFICIENCY
      Input and final pressures can be easily modified on the BOGE Booster providing a universal compressor to meet varying pressure requirements.
    • INTEGRATED OIL LEVEL MONITORING
      Oil level monitoring comes standard with the BOGE Booster ensuring increased operating safety and reduced maintenance costs.
    • PRE-FILTER
      A pre-filter comes standard with the BOGE Booster to optimise intake air quality. This serves to prevent damage in aggressive environments and maintains operational integrity.
    • VENTILATION WITH CONDENSATE DRAIN
      Ventilation with condensate drain is an optional extra for the BOGE Booster; it is compact and does not require any additional space.

    The BOGE Booster is the perfect solution for very high discharge pressures. It uses pre-compressed, pre-treated air from an existing network or from a low-pressure compressor, which is then compressed to the desired higher discharge pressure – ideal for industrial applications.

    Product

    Inlet pressure piston compressor, oil lubricated

    Advantages

    • designed for 100% duty cycle
    • high pressures
  • BOGE Max. Pressure Effective Delivery Volume*
    50 Hz
    Motor Power Dimensions
    W × D × H
    Weight
    Type bar psig m3/min cfm kW hp mm kg
    SRMV 390-5 15 220 2.135 75.0 5.5 7.5 1300 x 740 x 890 210
    SRMV 510-5 15 220 2.728 96.0 7.5 10 1300 x 740 x 890 215
    SRMV 720-5 15 220 3.766 133.0 11 15 1300 x 740 x 874 260
    SRMV 920-5 15 220 4.901 173.0 15 20 1350 x 740 x 960 330
    SRMV 390-10 15 220 4.155 147.0 5.5 7.5 1300 x 740 x 890 210
    SRMV 570-10 15 220 5.586 197.0 7.5 10 1300 x 740 x 890 215
    SRMV 720-10 15 220 7.320 258.0 11 15 1300 x 740 x 874 260

    * Effective free air delivery as per ISO 1217:2009 Appendix C, measured at 80% maximum pressure.
