Oil-Water Separators

Gravity separation is a thing of the past

    • NO LIMITATION
      Traditional gravity separation of oil and water is overburdened as modern fully synthetic oils in particular, which are increasingly used in compressors, tend to emulsify in condensate. The BOGE CC-2 accommodates this with all compressor oils.
    • NO WORDS
      To assess the condition of the filter, the new oil-water separators from BOGE have two indicator displays - one per tower. The display in the first tower indicates when the filter element is saturated.
    • NO LONG BREAKS
      Downtime is always unproductive so it is good if this can be limited. The BOGE CC-2 works with ergonomically divided filter units, which weigh less in their saturated condition and can therefore be removed more quickly.
    • WITH MAXIMUM CAUTION
      An electronic alarm contact is also available as an option from model CC 5-2 onwards, and this releases automatically when the filter is saturated. This alarm contact can easily be integrated into a higher-level control.

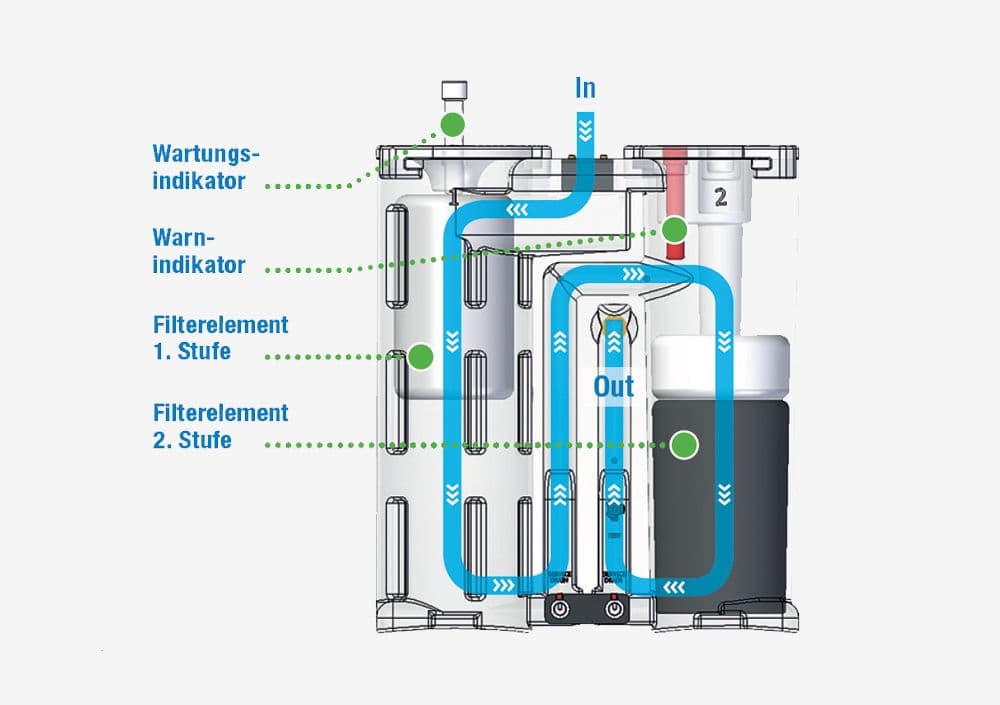

    All oil-lubricated compressors produce condensate, which has to be treated prior to disposal. BOGE CC-2 oil-water separators operate with different filter stages, in which coated polypropylene fibres as well as charcoal are used. A residual oil content of < 10 ppm is therefore reliably achieved at the outlet, and this applies for all compressor oils – even for the fully synthetic oils that are standard nowadays.

    Product

    BOGE CC-2 oil-water separator

    Advantages

    • DIBT approval for usage worldwide
    • Residual oil content of < 10 ppm
    • Simplified maintenance
    • Suitable for all types of oil
    • Two indicator displays for degree of saturation
    • With an optional electronic alarm contact
  • BOGE Max. Pressure Flow Capacity
    50 Hz     		Dimensions
    W × D × H
    Type bar psig m3/min cfm mm
    CC 2-2 0 0 2.000 70.6 255 x 230 x 238
    CC 4-2 0 0 4.000 141.2 392 x 211 x 368
    CC 5-2 0 0 5.000 176.6 580 x 190 x 610
    CC 10-2 0 0 10.000 353.1 650 x 240 x 750
    CC 20-2 0 0 20.000 706.3 780 x 305 x 900
    CC 30-2 0 0 30.000 1,059.4 970 x 380 x 900
    CC 60-2 0 0 60.000 2,118.9 1160 x 480 x 1040
